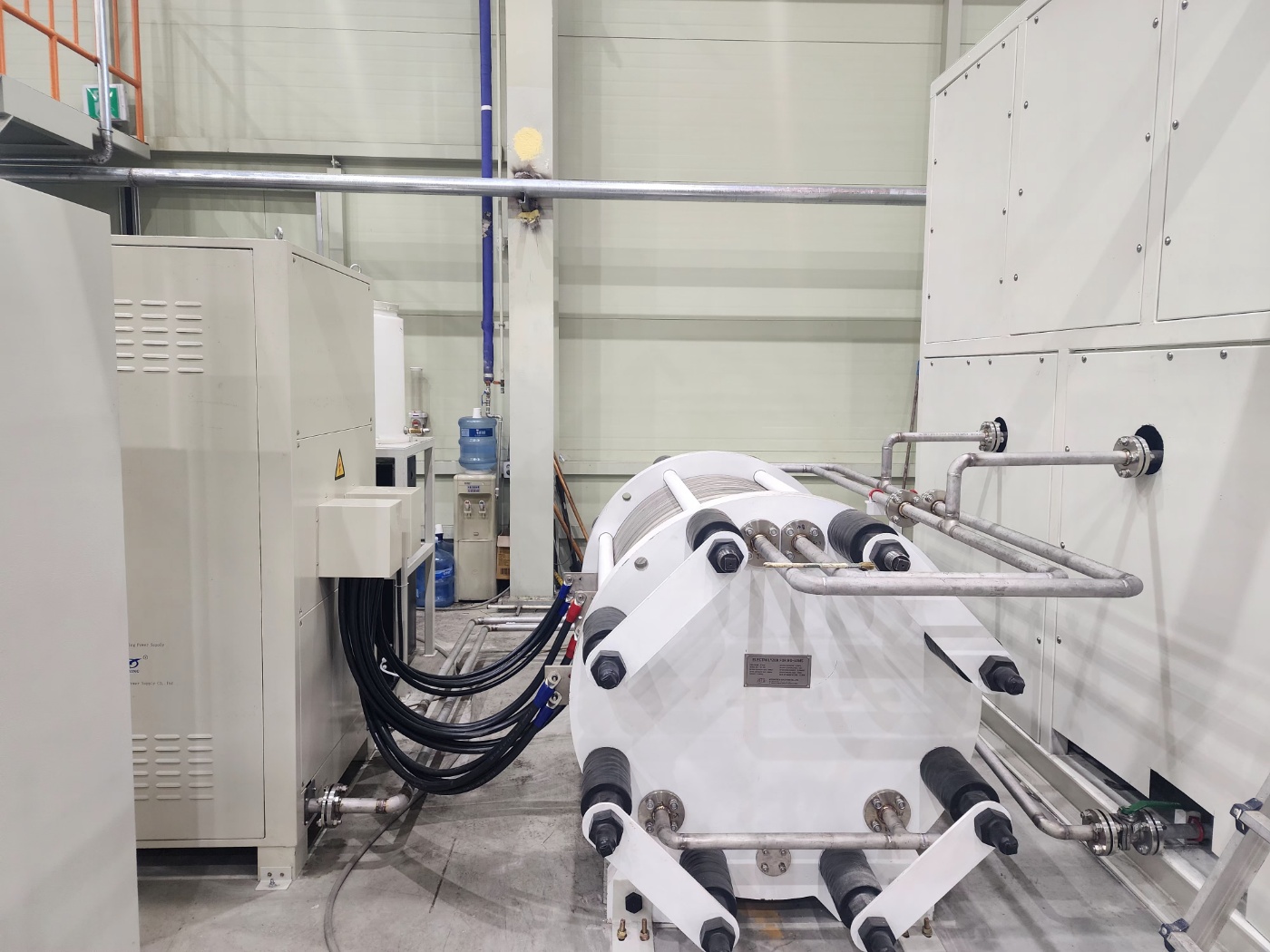

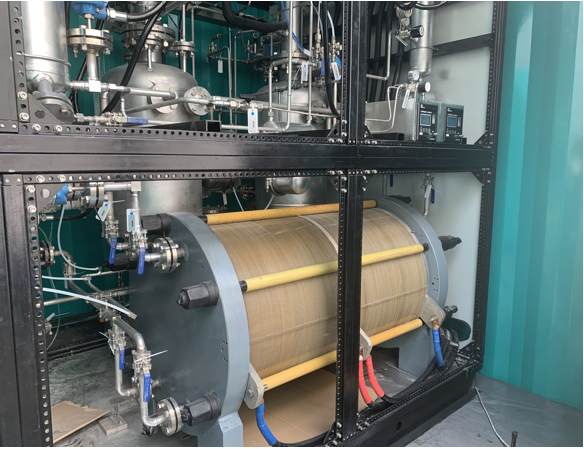

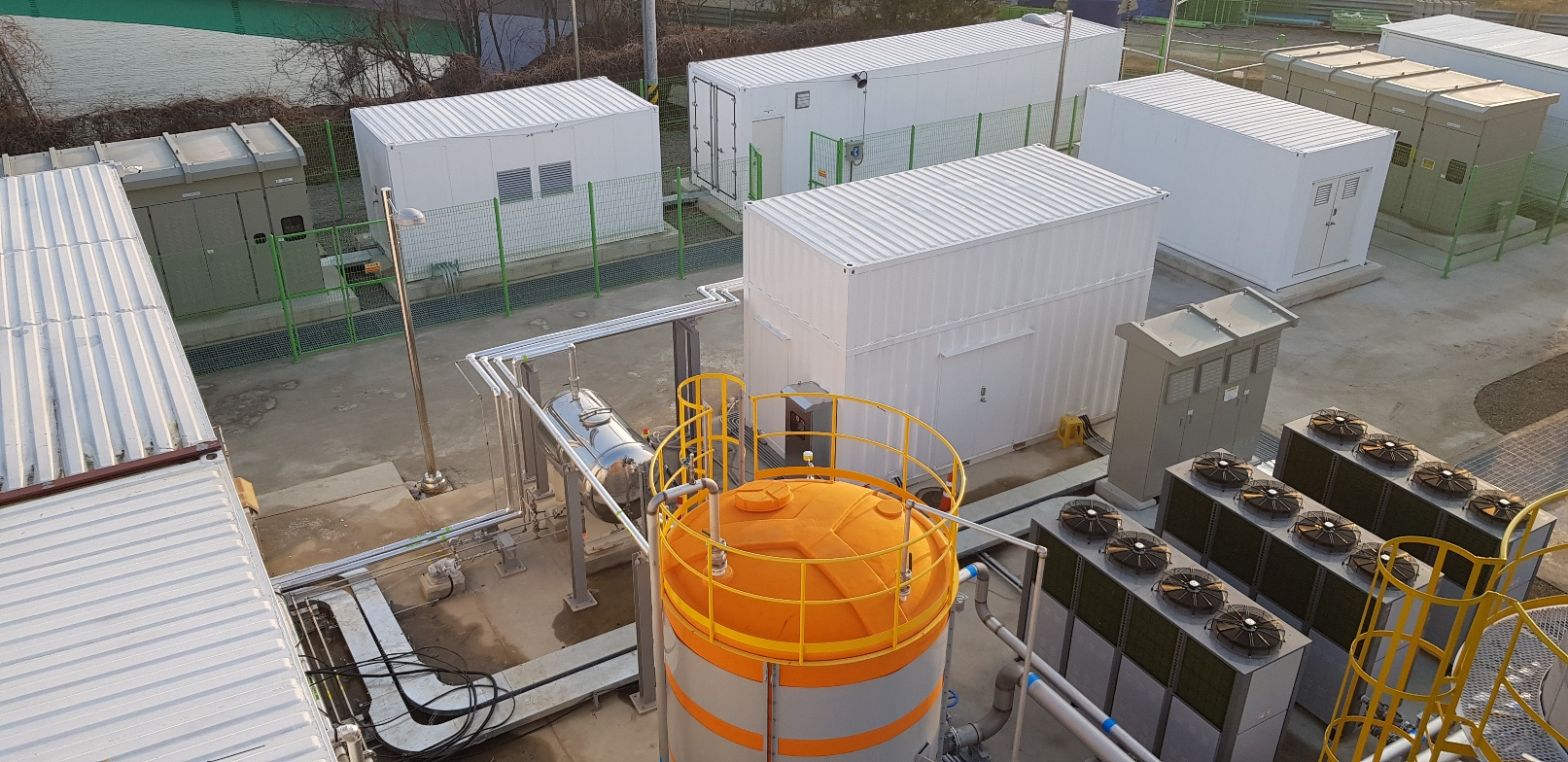

AWE type Hydrogen Generator

- AWE (Alkaline Water Electrolysis) type / PEM (Polymer Electrolyte Membrane) type

- Manufacture / Modify according to Customer request

- Able to control the production of hydrogen within the maximum production

- No electrolyte management is required using a solid polymer electrolyte (PEM) method

- No corrosion as only pure water is used

Unit Hydrogen Gas Generator Model
HG-15MS HG-50MS HG-200MS HG-500MS HG-1000MS
  I. Hydrogen Gas Production
   Flow Rate Nm³ 15 50 200 500 1000
   Operating Pressure  MPa 0.3 - 0.8 0.3 - 0.8 0.3 - 0.8 0.3 - 0.8 0.3 - 0.8
   Production Temperature  ℃ 32 32 32 32 32
   Hydrogen Purity  % 99.995~99.999 99.995~99.999 99.995~99.999 99.995~99.999 99.995~99.999
   Operating Range  % 15-100 15-100 15-100 15-100 30-100
  II. Oxygen Gas Production
   Flow Rate  Nm³ 7.5 25 100 250 500
   Operating Pressure Mpa 0.3 - 0.8 0.3 - 0.8 0.3 - 0.8 0.3 - 0.8 0.3 - 0.8
   Oxygen Purity  % 99.7 99.7 99.7 99.7 99.7
   Operating Range  % 15-100 15-100 15-100 15-100 30-100
  III. Power Supply
   Voltage Factory Configured, 380-480 VAC, 3-Phase
   Frequency 50-60 Hz
  IV. Performance Guaranty
   Stack P/W Consumption  kWh/Nm³ 5 5 4.7 4.6 4.6
   Efficiency Of Rectifier % 90~93 90~93 90~93 90~93 90~93
   BOP P/W Consumption 　 　
    - KOH Circul. Pump kWh - 1.9 4.5 7 15
    - Demi Water Pump kWh - 2.2 3 3 8
    - Elec. Heater  kWh - 5 8 10 15
   V. Dimension & Weight
   Length for Stack  mm - 2060 4010 5400 6000
   Weight for Stack  kg - 8000 25000 35000 50000
   Dim. for Gas Liquid Separating Sys.  mm N/A 2800×1800×3650 3300×1900×4500 4000×2500×4500 4700×3200×4500
   Dim. for Gas Purification Sys. mm N/A 2700×1800×2700 3000×1800×4500 3800×2200×4500 4300×2700×4500
   VI. Type - Case Case/Container
