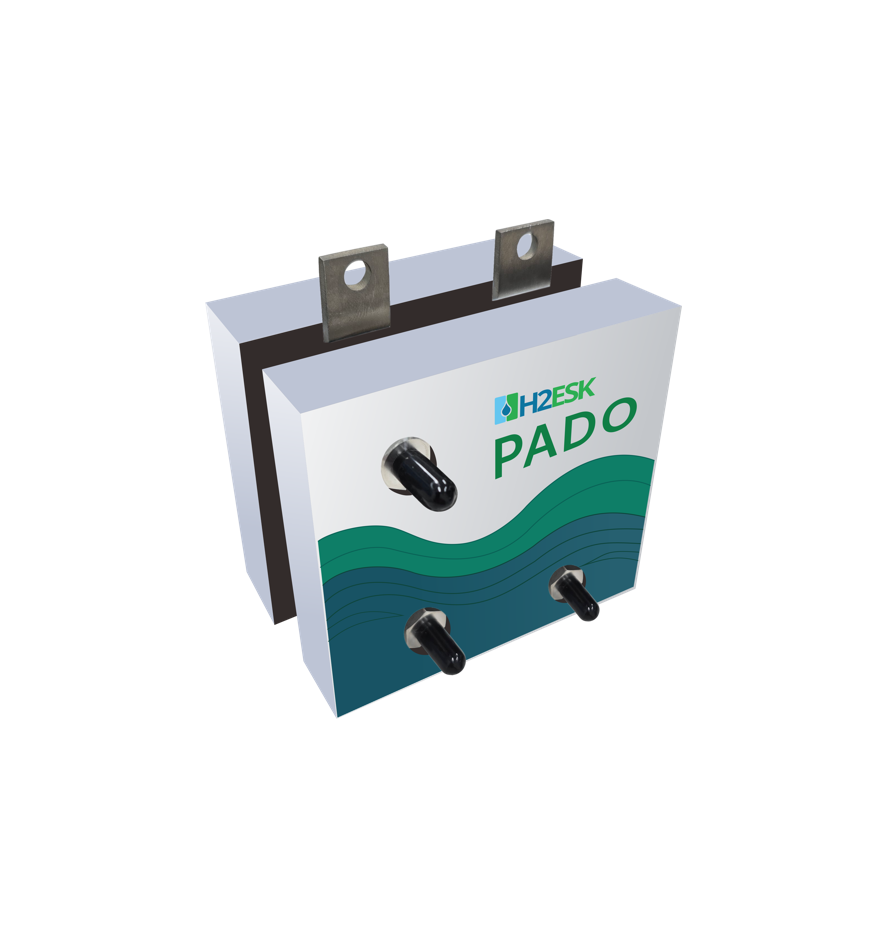

- Active area 25㎠ stack
| Number of Cells | 4 | 12 | 24 |
| Hydrogen Generation Rate (NL/hr) | 70 | 220 | 440 |
| H2 Purity | Higher than 99.99 % (except humidity) | ||
| H2 Pressure | ~ 3 bar | ||
| Stack Operation Temperature | Recommend 60 ~ 70 ˚C (5 ~ 90 ˚C possible) | ||
| Oxygen Generation Rate (NL/hr) | 35 | 110 | 220 |
| Maximum Applying Current (A) | 40 | 40 | 40 |
| Maximum Applying Voltage (V) | 8 | 24 | 48 |
| Maximum Power Consumption (W) | 320 | 960 | 1920 |
| Water Consumption (cc/hr) (assumed recycling water in H2 chamber) |
60 | 180 | 360 |
| Water Quality | Distilled or Deionized Water (lower than 1µS/cm) | ||
| Fluid inlet & outlet connection | 1/4 inch NPT fitting | ||
| Stack Dimension (W x H x D)mm (exclude bolt tips) |
100x90x55 | 100x90x95 | 100x90x155 |
| Weight (kg) | 1.5 | 2.1 | 3 |

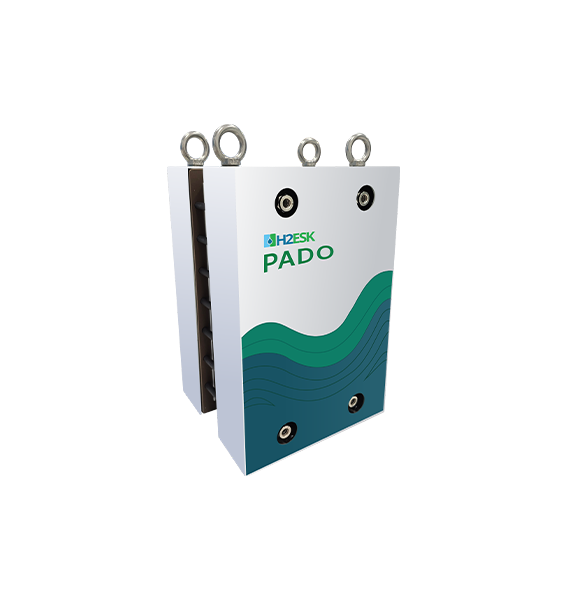

- Active area 100㎠ stack
| Number of Cells | 4 | 12 | 24 |
| Hydrogen Generation Rate (NL/hr) | 270 | 820 | 1640 |
| H2 Purity | Higher than 99.99 % (except humidity) | ||
| H2 Pressure | ~ 7 bar | ||
| Stack Operation Temperature | Recommend 60 ~ 70 ˚C (5 ~ 90 ˚C possible) | ||
| Oxygen Generation Rate (NL/hr) | 135 | 410 | 820 |
| Maximum Applying Current (A) | 150 | 150 | 150 |
| Maximum Applying Voltage (V) | 8 | 24 | 48 |
| Maximum Power Consumption (kW) | 1.2 | 3.6 | 7.2 |
| Water Consumption (cc/hr) (assumed recycling water in H2 chamber) |
230 | 750 | 1500 |
| Water Quality | Distilled or Deionized Water (lower than 1µS/cm) | ||
| Fluid inlet & outlet connection | 1/4 inch NPT fitting | ||
| Stack Dimension (W x H x D)mm (exclude bolt tips) |
160x175x107 | 160x175x147 | 160x175x205 |
| Weight (kg) | 8.8 | 11.4 | 15.4 |

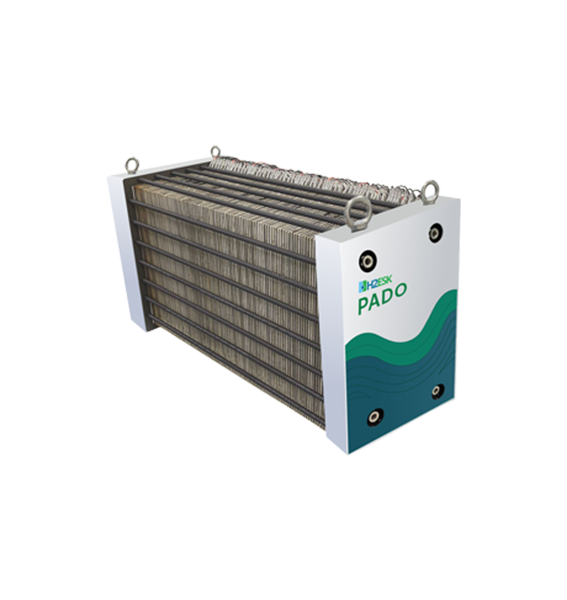

- Active area 330㎠ stack
| Number of Cells | 24 | 50 | 100 |
| Hydrogen Generation Rate (Nm3/hr) | 5.5 | 11.4 | 22.8 |
| H2 Purity | Higher than 99.99 % (except humidity) | ||
| H2 Pressure | ~ 10 bar | ||
| Stack Operation Temperature | Recommend 60 ~ 70 ˚C (5 ~ 90 ˚C possible) | ||
| Oxygen Generation Rate (Nm3/hr) | 2.7 | 5.7 | 11.4 |
| Maximum Applying Current (A) | 500 | 500 | 500 |
| Maximum Applying Voltage (V) | 48 | 100 | 200 |
| Maximum Power Consumption (kW) | 24 | 50 | 100 |
| Water Consumption (L/hr) (assumed recycling water in H2 chamber) |
5 | 10 | 20 |
| Water Quality | Distilled or Deionized Water (lower than 1µS/cm) | ||
| Fluid inlet & outlet connection | 3/8 inch NPT fitting | ||
| Stack Dimension (W x H x D)mm (exclude bolt tips) |
218x385x225 | 218x385x350 | 218x385x590 |
| Weight (kg) | 50 | 70 | 110 |
