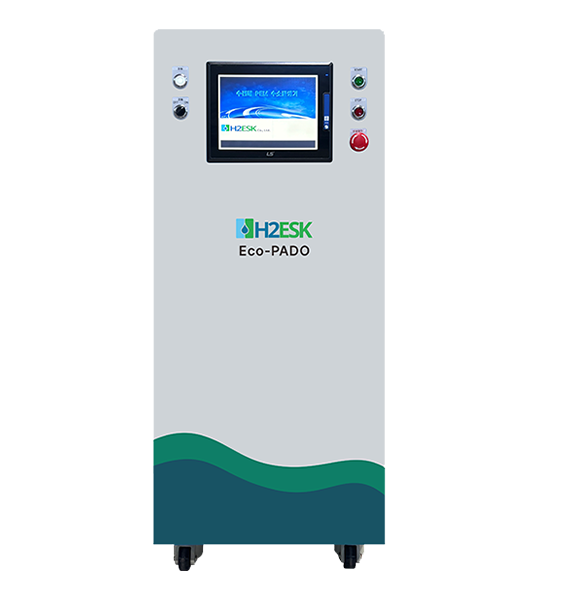

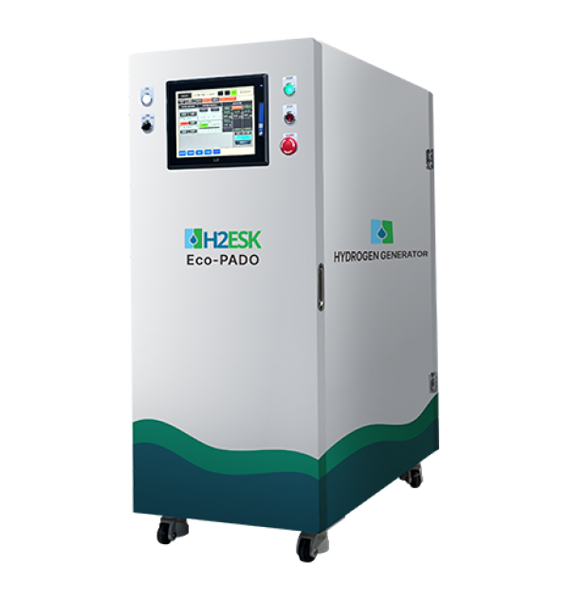

Hydrogen Generator
- Eco PADO
H2ESK’s Eco-PADO Hydrogen Generator is a high-efficiency PEM water electrolysis system designed for safe, stable, and ultra-clean hydrogen production. With a compact structure and fully automatic operation, it is ideal for laboratories, universities, R&D centers, and small-scale industrial applications requiring consistent and high-purity hydrogen.
* The product specifications can be fully customized according to customer requirements.
| Electrolyser Type | PEM Water Electrolysis Type |
|---|---|
| Input Power | 380VAC, 3-phase, 50/60Hz (Option: 220V Single-phase) |
| Power Consumption | < 5 kW |
| Hydrogen Gas Production | Hydrogen: 1 Nm³/h (1,000 L/h), approx. 2 kg/day |
| Operating Pressure | Max. 5 bar |
| Operating Temperature | 10 ~ 60°C |
| Hydrogen Purity | Hydrogen gas 99.97% ~ 99.99% (with condenser) |
| Option: Hydrogen gas + ambient humidity (without condenser) | |
| Option: 99.999% purity (with dryer) | |
| Feed Water | Ultrapure water or DI water (can be used by connecting suction hose) |
| If tap water is supplied, the system produces its own pure water |
